2.5K Single Photon Detection Cryostat

The single-photon detection cryostat is mainly composed of a vacuum chamber, a compressor, a refrigerator, a sample stage, and a temperature control component. The chamber has 4 interfaces reserved for installing optical fiber or RF line feedthrough or KF connections. The lowest temperature of the refrigerator sample stage can reach 2.2K (no load), and the temperature control system can achieve precise temperature control at the mK level to ensure the normal operation of the single-photon detector.

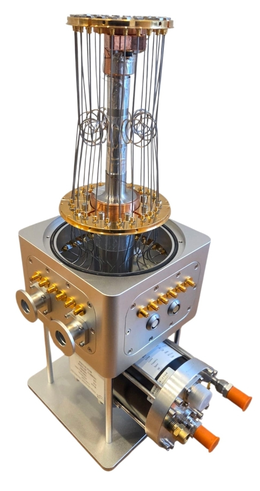

Acryo 2K SNSPD Cryostat
Acryo 2K SNSPD Cryostat
Typical Specifications
Cold Head 4K GM Cryocooler
Temperature Range 2.3K - 325K
Sample Environment Vacuum
Sample Size 50mm / 90mm
Wiring DC / RF
Cooldown Time < 240min to 4.2K
Compressor Air Cooled Standard or Rack Integrated

Acryo 2.5K 24 RF Coax Lines with SMP Connectors
Acryo 2.5K 24 RF Coax Lines with SMP Connectors

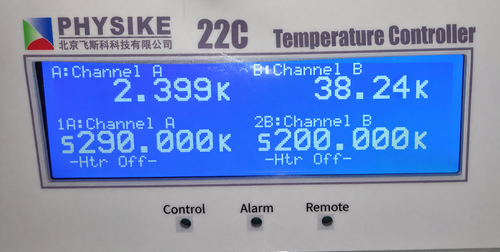

24xRF Coax on SMP _90mm Sample Size _ <2.399K
24xRF Coax on SMP _90mm Sample Size _ <2.399K
