4K XL Cryostat

The Acryo 4K XL is a cost-effective, tabletop cryostat system designed for electrical research and rapid pre-testing of dilution refrigerator samples. It can be configured with a variety of electrical interfaces, including DC, RF, and triaxial connections, providing flexibility for a wide range of experimental requirements.

Featuring a large-volume sample chamber and powerful cooling performance, the Acryo 4K XL serves as a highly capable experimental workhorse for research laboratories.

The system can be uniquely configured with a Gifford–McMahon (GM) cryocooler offering cooling powers of 1.8 W, 2.5 W, or 4 W at 4.2 K, allowing users to select the performance level that best suits their application.

Typical Specifications
Cold Head 4K GM Cryocooler
Cooling Power 1.8W / 2.5W / [email protected]
Sample Sizes 150mm / 250mm / 350mm
Temperature Range 2.2K - 325K
Sample Environment Vacuum
Applications

Electrical, optical, infrared detectors, low-temperature cold trap, ion trap, cold molecules, microwave devices, single photon detection and quantum devices

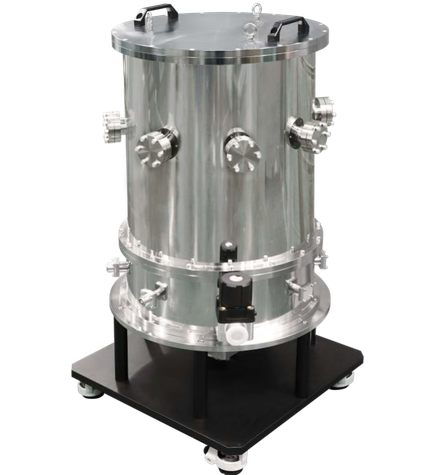

Acryo-4K_350mm_XL
Acryo-4K_350mm_XL

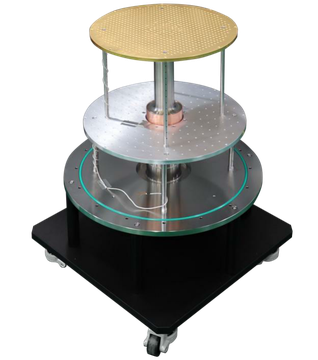

Acro-4K-350mm Sample Size
Acro-4K-350mm Sample Size

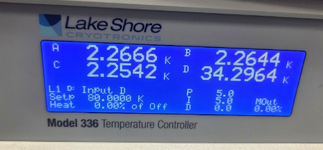

Acryo-4K-350mm  2.25K Sample Plate
Acryo-4K-350mm 2.25K Sample Plate
