Cryogenic Temperature Controller

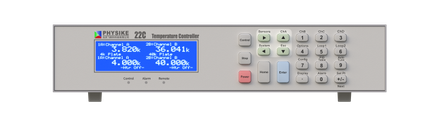

22C Dual-Channel Temperature Controller

Two multipurpose input channels support Diode, Platinum RTD and most cryogenic NTC resistance temperature sensors.
Thermocouple inputs are a field installable option.
Operation from<300mK to 1500K with an appropriate sensor.
Four independent control loops: Loop #1: Maximum 50W output; Loop #2: Maximum 25W output; Loop # 3 and # 4 for non-power output.
Table control mode automatically smooths the input temperature and controls the temperature continuously over a wide temperature range.
Two large 10-Ampere dry-contact relays.
Data logging to internal Non-Volatile memory.
Remote interfaces include Ethernet and USB. IEEE-488.2 (GPIB) is a field installable option.
Provide Labview driver

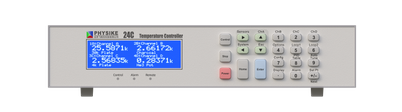

24C Four-Channel Temperature Controller

Four multipurpose input channels support Diode, Platinum RTD and most cryogenic NTC resistance temperature sensors.
Thermocouple inputs are a field installable option.
Operation from<300mK to 1500K with an appropriate sensor.
Four independent control loops: Loop #1: Maximum 50W output; Loop #2: Maximum 25W output; Loop # 3 and # 4 for non-power output.
Table control mode automatically smooths the input temperature and controls the temperature continuously over a wide temperature range.
Two large 10-Ampere dry-contact relays.
Data logging to internal Non-Volatile memory.
Remote interfaces include Ethernet and USB. IEEE-488.2 (GPIB) is a field installable option.
Provide Labview driver

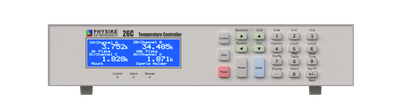

26C Four-Channel Temperature Controller *High Heater Power*

Operation from<300mK to 1500K with an appropriate sensor.
Four multipurpose input channels support Diode, Platinum RTD and most cryogenic NTC resistance temperature sensors.
Thermocouple inputs are a field installable option.
Four independent control loops: Loop #1: Maximum 100W output; Loop #2: Maximum 50W output; Loop # 3 and # 4 for non-power output.
Two large 10-Ampere dry-contact relays.
Remote interfaces include Ethernet and USB.
Provide Labview driver.

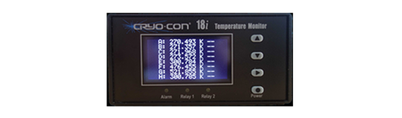

18i Temperature Monitor

8 fully independent channels for simultaneous monitoring of 8 different types of temperature sensors
Internal non-volatile memory expanded to 2GB
Add industrial-grade security: configure firewalls and HTTPS certificate authentication
Industrial communication protocol for direct connection to most PLCs (programmable controllers)
Program your own design with Python Notbook by monitoring the embedded web server.
