Standard 20K GM Cryocooler
CryoPRIDE Cryocoolers are recognized as some of the most reliable and versatile cooling systems available on the market. Designed for specialized research applications, they offer compact, orientation-independent designs that enable flexible integration into a wide range of systems.
CryoPRIDE Cryocoolers are widely used in laboratory cryostats, superconducting magnets, liquefiers, and high-temperature superconducting (HTS) applications. Their proven performance, reliability, and operational flexibility make them an ideal choice for demanding scientific and research environments.

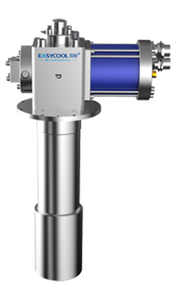

| Coldhead Type | KDE400SX | |
| Lowest Temperature | <14K | |
| Cooling Capacity (50Hz) | First Stage | |
| 45W @ 20K | ||
| Cooldown Time to 4.2K | <60min to 20K | |
| Compressor Type | KDC6000 | |
|
Power Consumption (50Hz) |
Steady | Cooldown |
| 6.5KW | 7.2KW | |
| Power Supply | 3 Phase (50Hz/60Hz ) | |
| Cooling Type | Water | |
| Standard Flex Lines | 2x 20m | |
| Maintenance inerval | Coldhead 10,000 Hours | |
| Coldhead Type | KDE500SX | |
| Lowest Temperature | <12K | |
| Cooling Capacity (50Hz) | First Stage | |
| 90W @ 20K | ||
| Cooldown Time to 4.2K | <45min to 20K | |
| Compressor Type | KDC100V | |
|
Power Consumption (50Hz) |
Steady | Cooldown |
| 12KW | 13KW | |
| Power Supply | 3 Phase (50Hz/60Hz ) | |
| Cooling Type | Water | |
| Standard Flex Lines | 2x 20m | |
| Maintenance inerval | Coldhead 8760 Hours | |
