Standard 4K Pulse Tube Cryocooler
CryoPRIDE 4K Pulse Tube Cryocoolers embody leading-edge technology, combining low vibration, high reliability, and minimal maintenance requirements. Their unique design features no moving parts within the cold head, ensuring enhanced operational stability and reduced wear.
In addition, they offer an optional remote valve unit, which further minimizes vibration, enables operation in higher magnetic fields, and simplifies maintenance procedures. CryoPRIDE Pulse Tube Cryocoolers provide a stable and dependable low-temperature solution for sensitive measurement, analytical, and research applications.
| Coldhead Type | PTC415 | |
| Lowest Temperature | <2.8K | |
| Cooling Capacity (50Hz) | First Stage | Second Stage |
| 42W @ 48K | 1.5W @ 4.2K | |
| Cooldown Time to 4.2K | <60min to 4.2K | |
| Compressor Type | KDC100V | |
|
Power Consumption (50Hz) |
Steady | Cooldown |
| 11KW | 13KW | |
| Power Supply | 3 Phase (50Hz/60Hz ) | |
| Cooling Type | Water | |
| Standard Flex Lines | 2x 20m | |
| Maintenance inerval | Coldhead 20000h | |

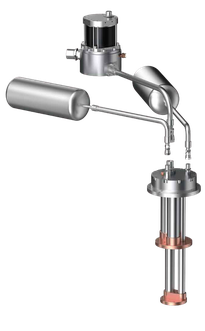

| Coldhead Type | PTC418 | |
| Lowest Temperature | <2.8K | |
| Cooling Capacity (50Hz) | First Stage | Second Stage |
| 42W @ 48K | 1.8W @ 4.2K | |
| Cooldown Time to 4.2K | <60min to 4.2K | |
| Compressor Type | KDC100V | |
|
Power Consumption (50Hz) |
Steady | Cooldown |
| 11.5KW | 13.5KW | |
| Power Supply | 3 Phase (50Hz/60Hz ) | |
| Cooling Type | Water | |
| Standard Flex Lines | 2x 20m | |
| Maintenance inerval | Coldhead 20000h | |
