Cryostats for Spectroscopy




The Optistat range of cryostats are designed to meet the needs of the most demanding spectroscopy applications. Excellent optical and electrical access, wide temperature ranges, (from 2 K up to 500 K) compact design and best-in-class cryogenic performance are matched to an extensive range of different options to ensure there is a cryostat perfectly matched to your experimental requirements. They offer different sample environments to best suit the requirements of your sample, and different cooling technologies to meet the needs of your laboratory.



Typical Applications:

  • UV/ visible reflectivity & absorption
  • FTIR spectroscopy
  • THz spectroscopy
  • Photoluminescence
  • Electroluminescence
  • Raman scattering
  • Electrical transport measurements
  • Photovoltage/current
  • Ultrafast spectroscopy



OptistatCF



A 4 K helium-flow, top-loading cryostat with sample in static exchange gas

  • 3.4 - 300 K temperature range

  • Quick sample change via top-loading sample probe

  • Superb optical access


                        OptistatCF-V



                         A 4 K helium-flow, sample-in-vacuum cryostat system.

  • 3.2 K - 500 K temperature range

  • Quick cool-down time and low helium consumption

  • Superb optical access


                        OptistatDN



                         A 77 K nitrogen bath, top-loading cryostat with sample in static exchange gas

  • 77 K - 500 K temperature range
  • Quick sample change via top-loading sample probe
  • Long cryogen hold time

                        OptistatDN-V



                         A 77 K nitrogen bath, sample-in-vacuum cryostat

  • 77 K - 500 K temperature range

  • Large sample space

  • Long cryogen hold time

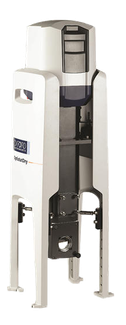

                OptistatDry BLV



A Cryofree® optical cryostat for spectroscopy applications providing a temperature-controlled, sample-in-vacuum measurement environment, with sample access via a unique bottom-loading mechanism.

  • Wide sample temperature range: < 3 K to 300 K
  • Easy set-up and operation, no liquid cryogens are required
  • Unique sample loading, reducing time between experiments

OptistatDry BLV-TLEX



A Cryofree® optical cryostat for spectroscopy applications providing a temperature-controlled, sample-in-exchange-gas measurement environment, with sample access via a unique top-loading mechanism.

  • Wide sample temperature range: < 4 K to 300 K

  • Easy set-up and operation, no liquid cryogens are required

  • Unique sample loading, reducing time between experiments
